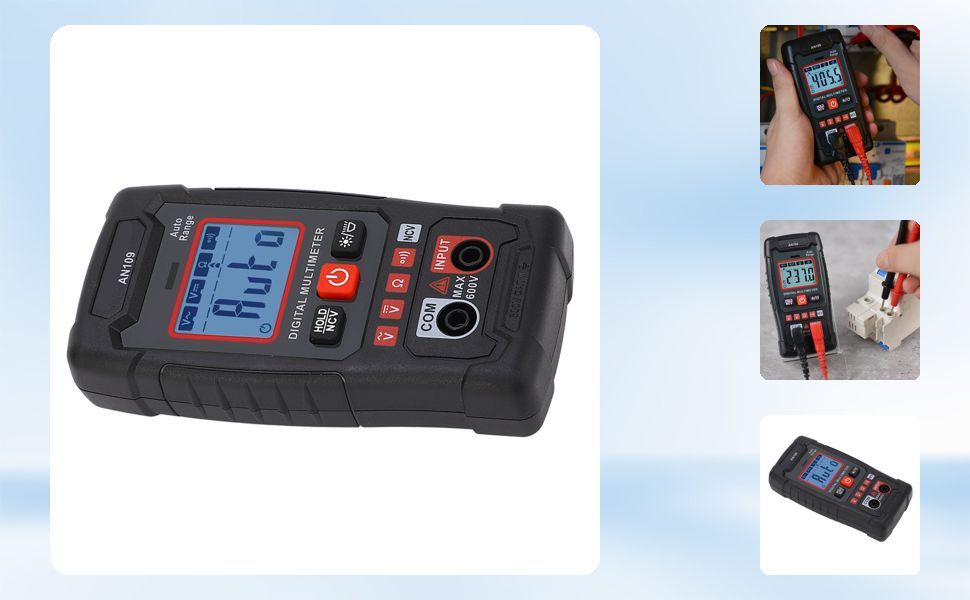

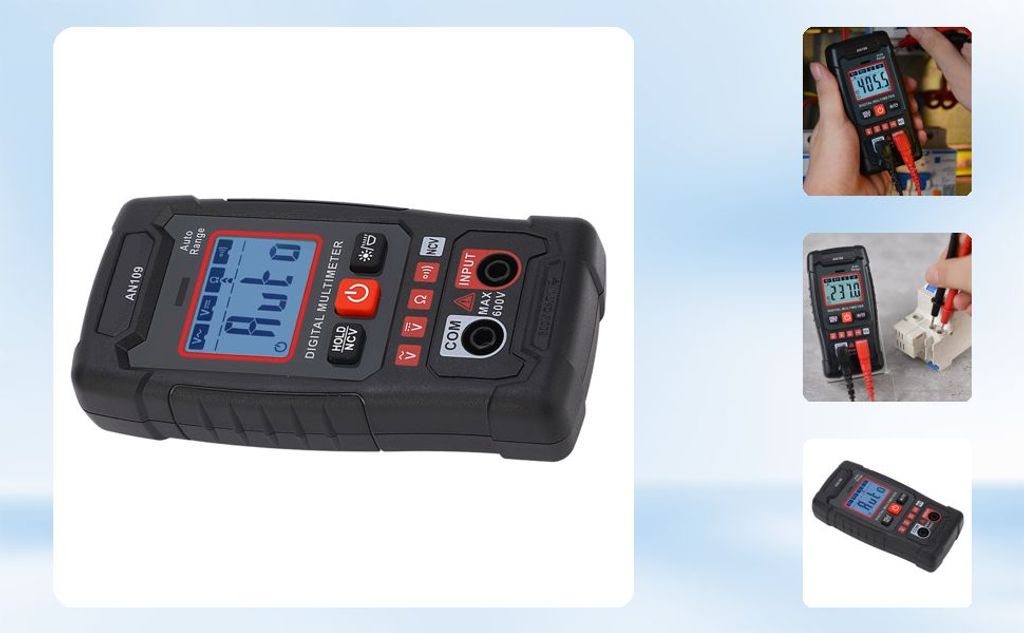

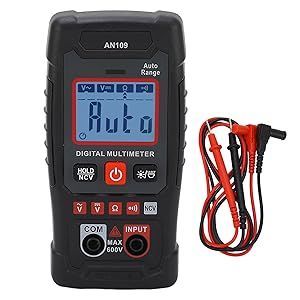

AN109 4000 Counts Digital Multimeter

AN109 4000 Counts Digital Multimeter, Handheld Multimeter Intelligent Measurement Tester Automatic Range Voltmeter Voltage Tester for AC/DC Voltage

• How to Use：

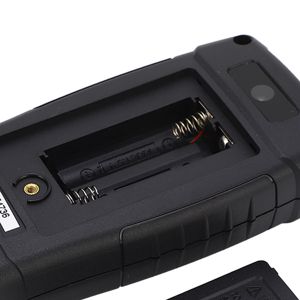

• 1. Please remove the rubber sleeve behind the multimeter, open the battery compartment back cover, and place 2pcs AAA battery in the battery compartment according to the polarity markings. Cover the battery compartment.
• 2. Open the multimeter and insert the test probe according to the prompts. After the two ends of the test probe come into with each other for calibration, enter the test.

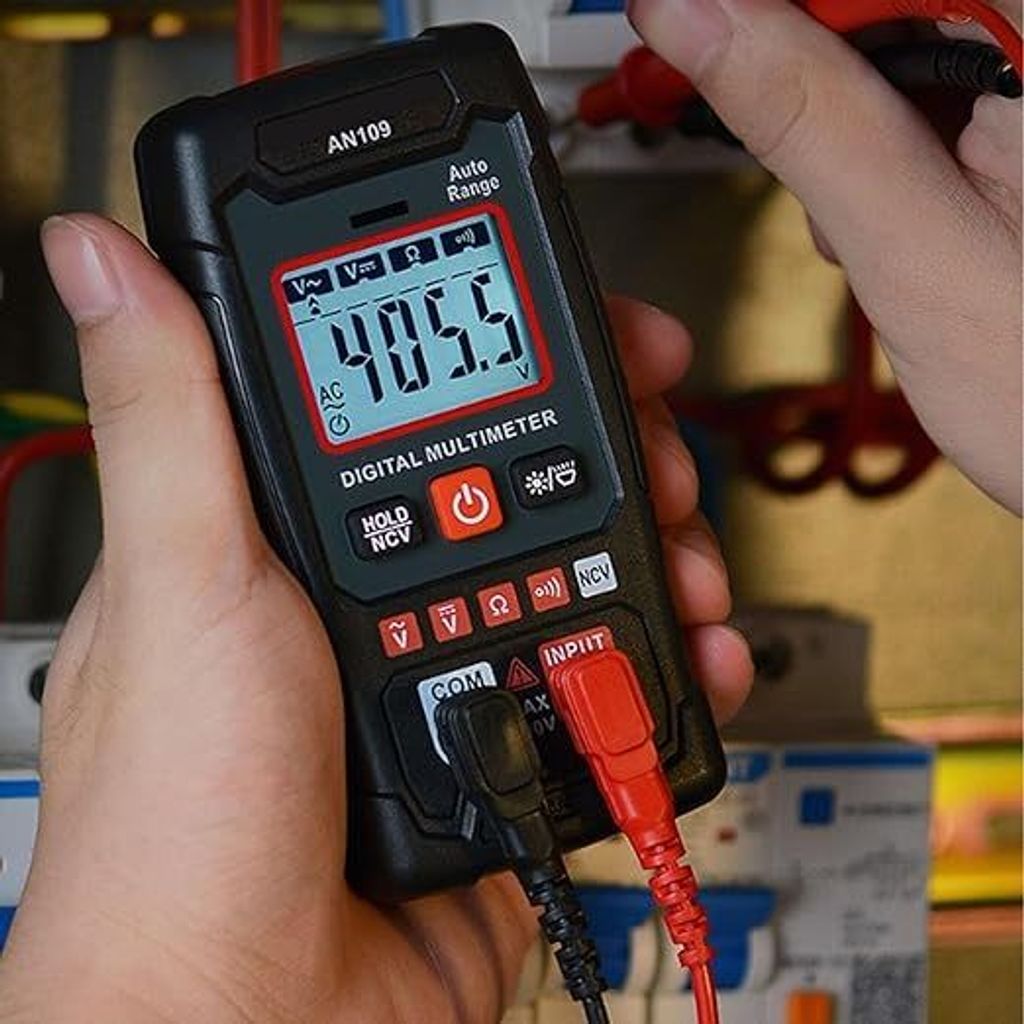

• 3. Measure AC and DC voltage,, or continuity. Insert the test probes into the multimeter and connect them to both ends of the tested object. The multimeter automatically measures without the need for user selection.
• 4. Note: If you want to use the NCV function, there is no need to use test probes.

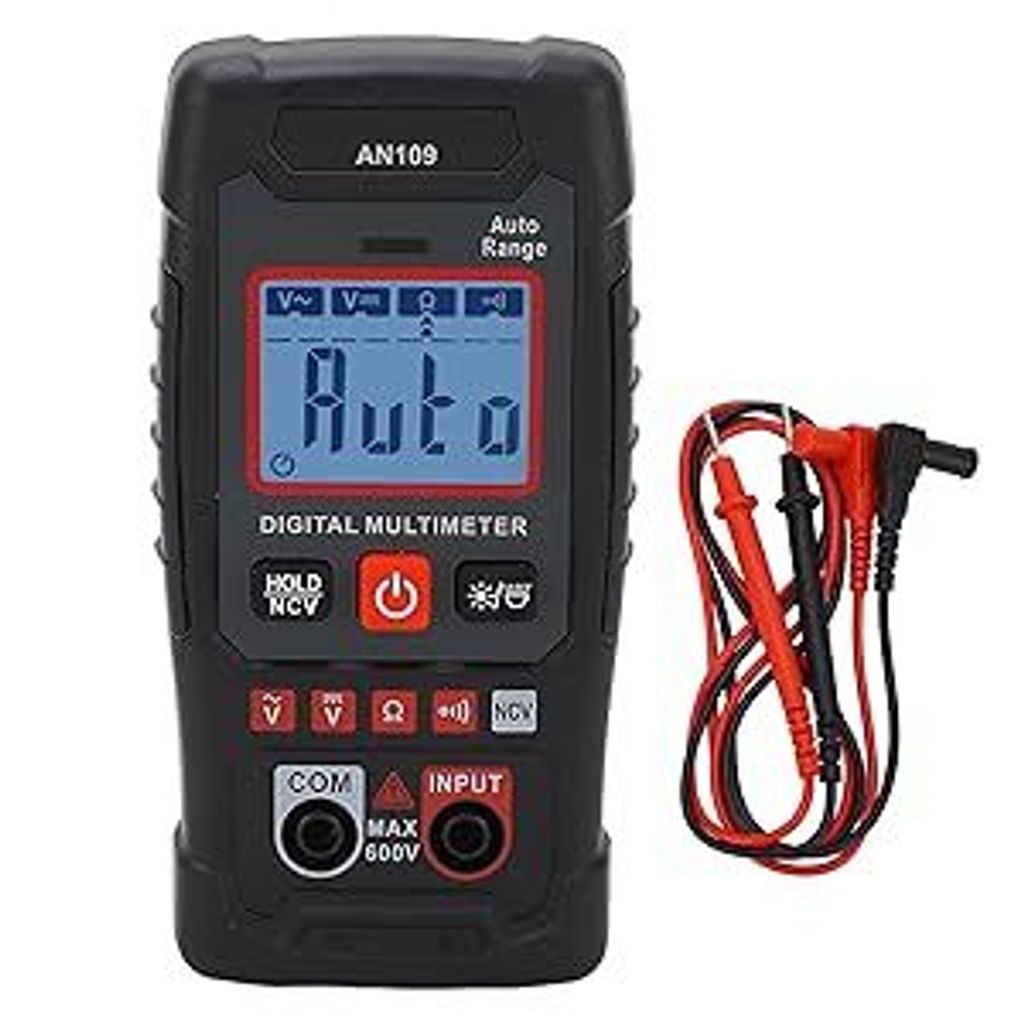

• Package List
• 1 x Digital Multimeter
• 2 x Probe
• 1 x User Manual

• Non Testing: Fully non voltage test, light and audio alarm. Time saving and You don't need to connect wires to measure the voltage on AC wires, which makes line maintenance easier.
• High in Safety: The instrument adopts overload measures internally to improve product safety performance and maximize safety. External silicone cover can protecting the multimeter from damage and potential electric shock.
• Digital Multimeter: Equipped with AL intelligent automatic mode, the 4,000 count intelligent multimeter allows you to quickly switch between all measurement works, including AC and DC voltage, , and continuity, without the need to choose a mode or range. It makes measurement work simple, fast, and accurate.
  • SpecificationI
  • tem Type: Digital MultimeterM
  • odel: AN109M
  • aterial: ABSB
  • attery: 2 x 1.5V AAA battery, shipped without battery.F
  • unction: Can measure AC and DC voltage,, circuit continuity.N
  • ote: Unable to test current. W
  • orking Temperature and Humidity: 0-40℃. <80%RH, <10℃, non condensing.A
  • ltitude: <2000mS
  • torage Temperature and Humidity: -10~60℃, <70%RH, remove the battery.O
  • ver Range Indication: Display OLM
  • aximum Count: 4,000S
  • ampling Rate: 3 times per second.D
  • ata Retention: YesD
  • isplay Screen with Gear Display: YesN
  • CV Non Detection: YesD
  • ata Retention: YesB
  • attery Undervoltage Indication: YesA
  • utomatic Shutdown: YesF
  • lashlight: YesD
  • C Voltage: 4V with 0.001V resolution. 40V with 0.01V resolution. 400V with 0.1V resolution. 600V with 1V resolutionM
  • easurable Voltage: 0.8~600VO
  • verload 600VM
  • aximum Measurement Voltage: 600V
